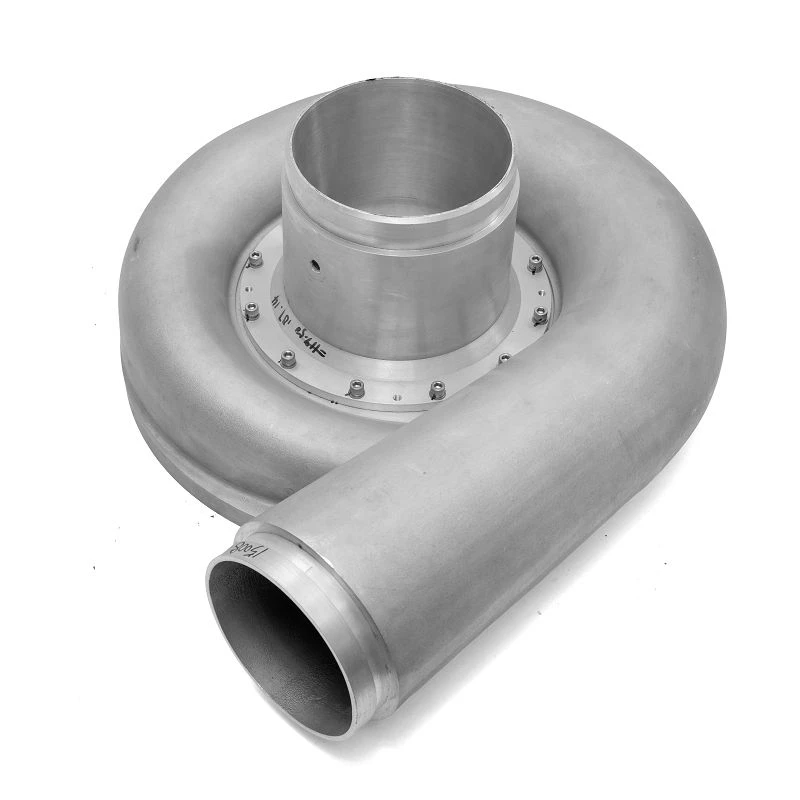

Product Introduction (Magnetic Levitation Fan Volute Air Passage Components)

Engineered for high-efficiency airflow, low wind resistance and stable high-speed operation in maglev blowers, our custom volute and air flow channel accessories are key pneumatic components for energy-saving air supply systems. Manufactured from high-grade aluminum alloy and stainless steel, these parts feature excellent aerodynamic performance, structural rigidity and low vibration, perfectly matching the high-speed rotation and silent operation requirements of magnetic levitation blowers. Beyond smooth air delivery, they ensure precise assembly concentricity and ideal dynamic balance to reduce noise and energy loss. As your professional manufacturing partner, we strictly control the whole production process from precision CNC machining, mold forming to dynamic balance testing, fully complying with technical standards for high-speed maglev equipment.

Customization & Manufacturing Advantages

We specialize in custom-made volute and air flow channel parts for maglev blowers produced strictly according to your drawings and aerodynamic specifications, with multiple profiles and sizes for different air volume, pressure and rotation speed demands. Premium aluminum alloys (ADC12, 6061, 6063) and stainless steel are selected to achieve lightweight structure, high strength and corrosion resistance. Our mature manufacturing system guarantees stable quality: each component is precision-machined for smooth inner surfaces, accurate dimensions and ideal dynamic balance. Advanced processes including die casting, CNC milling, polishing and dynamic balance correction are applied to optimize airflow efficiency and reduce turbulence, providing OEM-ready parts for direct blower assembly.

Product Basic Info

Product Name	Magnetic Levitation Fan Volute Air Passage Components	Main Material	Aluminum Alloy (ADC12, A380, Stainless Steel 6061, 6063)
Core Structure	Aluminum Alloy: Lightweight, Excellent Heat Dissipation, Good Castability Cast Iron: High Rigidity, Good Vibration Damping, Cost-effective Carbon Steel: High Strength, Economical and Practical	Manufacturing Process	Die Casting (Mainly for Aluminum Alloy), Sand Casting (for Cast Iron), Stamping and Drawing (for Thin Steel Plate), CNC Precision Machining
Surface Treatment	Anodizing (for Aluminum, Improves Corrosion Resistance and Hardness) Electroplating (Zinc, Nickel, Anti-rust and Aesthetic) Powder Coating/Painting (Protection and Appearance)	Dimensions	Diameter (Fits with Motor Shell): Customized per Drawing, High Precision
Technical Standards	• Dimensional Accuracy: CNC Machining Can Achieve ±0.02mm • Surface Hardness: Anodized Film Hardness HV > 300 • Dynamic Balance Grade: According to Motor Speed Requirements (e.g., G6.3, G2.5) • Sealing/Waterproof Rating: Some Models Require Passing IP54, IP65, etc. • Corrosion Resistance: Pass Neutral Salt Spray Test (e.g., 72 Hours or More)	Applications	Servo Motors, Stepper Motors, Brushless Motors, Geared Motors, Water Pump Motors, Industrial Fans, Household Appliance Motors
Place of Origin	Foshan, China	Brand Name	dingzhan
MOQ	1000pcs	Lead Time	30-35 days

Custom Manufacturing Capability

Our core strength lies in custom production of maglev blower volute and air flow channel components based on your engineering drawings and aerodynamic design. By utilizing precision die casting and CNC machining technologies, we accurately reproduce complex curved profiles while optimizing airflow performance and structural stability. Full customization is available for profile shape, size, wall thickness and dynamic balance requirements, turning your aerodynamic design into high-efficiency finished products.

Production Process Flow

Mold preparation → Raw material melting → Die casting / CNC forming → Deburring → Precision machining → Polishing → Dynamic balance correction → Surface treatment → Cleaning → Full inspection → Packaging

Collaboration Benefits.

We act as your reliable technical manufacturing partner throughout product development and mass production. Rich experience in high-speed blower pneumatic components ensures our volute and air flow channel parts feature low resistance, low noise, high efficiency and stable dynamic performance. From standard aerodynamic parts to customized high-speed models, we provide full engineering support to meet all your maglev blower production demands.
